Inconel 601 Wire Oxidation Resistance Inconel Alloy For Extreme Environments

Products

Inconel 601 Wire Oxidation Resistance Inconel Alloy For Extreme Environments

MOQ:	150kgs
Price:	Negotiatable
Standard Packaging:	Carton, plywood box, plywood pallet
Delivery Period:	2-30days
Payment Method:	L/C,T/T,Western Union
Supply Capacity:	300 Ton per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NikTech

Certification

ISO 9001:2008

Model Number

Inconel 601

Tensile Strength:

620 MPa

Surface:

Black, Peeled, Polishing, Bright

High Temperature Strength:

Maintains High Strength At Temperatures Up To 1000°C

Width:

As Your Request

Shape:

Round, Square, Flat

Feature:

High Temperature Corrosion Resistant

Condition:

Hard / Soft

Chemical Composition:

Nickel (50-70%), Chromium (20-30%), Iron (10-20%), Molybdenum (2-3%), Copper (0.5-1%), Titanium (0.2-0.6%), Aluminum (0.2-0.6%)

Chemical Position:

Ni 50~55%

Business Type:

Manufaturer

Thermal Expansion:

13-17 µm/mK

Thermal Conductivity:

11.5 W/mK

Sureface:

Bright,Oxided

Highlight:

Oxidation Resistance Inconel Alloy

Bright Inconel Alloy

Round Inconel 601 Wire

Product Description

Description

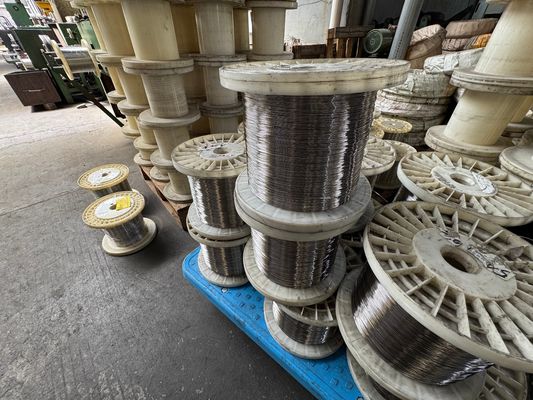

Inconel 601 wire is a nickel-chromium-iron alloy engineered for applications requiring exceptional resistance to high-temperature oxidation, carburization, and thermal fatigue. With a composition of 58–63% nickel, 21–25% chromium, and 1.0–1.7% aluminum, this alloy forms a protective oxide layer that withstands temperatures up to 1,250°C (2,282°F) in oxidizing, reducing, and inert atmospheres. Its controlled iron content (balance) and low carbon (≤0.10%) minimize carbide precipitation and intergranular attack, ensuring long-term performance in aggressive environments such as sulfur-containing flue gases, molten salts, and chlorinated hydrocarbons.

Certified to ASTM B166, AMS 5715, and DIN 17752 standards, Inconel 601 wire delivers tensile strength ≥550 MPa and elongation ≥30%, making it ideal for gas turbine combustors, heat treatment furnace components, and chemical processing reactors. The alloy’s high electrical resistivity (112 µΩ·cm) and low thermal expansion coefficient (14.2×10⁻⁶/°C) ensure dimensional stability in cyclic thermal operations, outperforming conventional stainless steels in high-heat and corrosive settings.

Technical Specifications (Table)

Property	Value	Standard
Chemical Composition	Ni: 58–63%, Cr: 21–25%, Fe: Balance	ASTM B166, AMS 5715
	Al: 1.0–1.7%, Mn: ≤1.0%, C: ≤0.10%	DIN 17752
Mechanical Properties	Tensile Strength: 550–690 MPa	ASTM E8, ASTM G48
	Yield Strength: ≥240 MPa
	Elongation: ≥30%
Physical Parameters	Density: 8.11 g/cm³	ISO 6892
	Melting Range: 1,370–1,425°C
	Thermal Conductivity: 11.7 W/m·K

Applications

Aerospace: Combustion chamber liners, afterburner components, and turbine seals.
Heat Treatment: Radiant tubes, muffles, and furnace rollers in carburizing atmospheres.
Chemical Processing: Reactors and heat exchangers handling sulfuric acid and chlorides.
Power Generation: Gas turbine combustors, boiler baffles, and flue gas ducting.
Petrochemical: Ethylene cracker tubes and sulfur recovery unit (SRU) components.

Q&A

Q1: Can Inconel 601 wire withstand cyclic oxidation at 1,200°C?
A: Yes. Its aluminum-chromium oxide layer provides exceptional resistance to spalling and scale formation during thermal cycling.

Q2: Is post-weld heat treatment required for Inconel 601 welds?
A: Generally not. However, stress relief annealing (870–980°C) is recommended for thick-section welds in high-pressure systems.

Q3: Does Inconel 601 comply with NACE MR0175 for sour gas environments?
A: While optimized for high-temperature oxidation, it meets NACE standards for moderate H₂S exposure when base materials are compliant.
