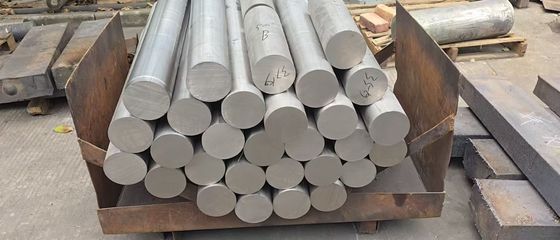

Mechanical Strength Monel K500 Bar For Marine Petrochemical Erospace
  • name

Mechanical Strength Monel K500 Bar For Marine Petrochemical Erospace

MOQ: 150kgs
Price: Negotiatable
Standard Packaging: carton, plywood pallet
Delivery Period: 2-30days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 300 Ton per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
NikTech
Certification
ISO 9001:2008
Model Number
Monel K500
Machinability:
Fair
Advantage:
Fast Delivery Time
Packing:
Standard Export Packing
Hardness:
Rockwell B 75-90
Dia:
0.6mm,0.8mm,0.9mm,1.0mm,1.2mm,1.6mm
Special Use:
Compressor Disks,machine Manufacturing
Keyword:
Monel 400 Wire
Electrical Conductivity:
34% IACS
Raw Materials:
NI63%,CU27-33%,AL2.3-3.15%
Technique:
Triple Casing
Standard:
GB / T 908 -2008 Or As Appropriate
Color:
Silvery White
Surface Treatment:
Copper Coated
Highlight:

Mechanical Strength monel k500 bar

,

0.6mm monel k500 bar

,

0.8mm monel k500 round bar

Product Description

Monel K500 Bar – Superior Corrosion Resistance & Mechanical Strength for Marine, Petrochemical & Aerospace Applications



Description

Monel K500 bar is a precipitation-hardened nickel-copper alloy engineered to deliver exceptional corrosion resistance, high tensile strength, and durability in the most demanding industrial environments. With a composition of 63–67% nickel, 27–33% copper, and additions of aluminum (2.3–3.15%) and titanium (0.35–0.85%), this alloy combines the proven corrosion resistance of Monel 400 with enhanced mechanical properties through γ' phase (Ni₃(Al,Ti)) precipitation hardening.

Ideal for marine, oil & gas, and aerospace systems, Monel K500 bars exhibit a tensile strength of 1,100–1,300 MPa and yield strength of 800–1,000 MPa after aging treatment, outperforming conventional stainless steels in high-stress applications. Its ability to resist chloride-induced pitting, stress corrosion cracking (SCC), and sulfidation in H₂S-rich environments makes it indispensable for seawater pumps, offshore valves, and sour gas well components. With a melting range of 1,288–1,343°C and low magnetic permeability even at cryogenic temperatures (-196°C), it ensures reliability in diverse thermal and electromagnetic condition.

Technical Specifications (Table)

Property Value Standard
Chemical Composition Ni: 63–67%, Cu: 27–33%, Al: 2.3–3.15% ASTM B865, ASME SB-127
  Ti: 0.35–0.85%, Fe: ≤2.0%, Mn: ≤1.5% NACE MR0175, DIN 17752
Mechanical Properties Tensile Strength: 1,100–1,300 MPa ASTM B865, ISO 15156-3
  Yield Strength: 800–1,000 MPa
  Elongation: ≥20%
Physical Parameters Density: 8.80 g/cm³ ISO 6892
  Melting Point: 1,288–1,343°C
  Thermal Conductivity: 22 W/m·K

Applications

  1. Marine Engineering: Pump shafts, propeller shafts, and seawater valves resistant to saltwater corrosion.

  2. Oil & Gas: Downhole tools, valve trim, and sour gas pipeline components in H₂S environments.

  3. Aerospace: Turbine blades, engine fasteners, and structural parts requiring high strength-to-weight ratios.

  4. Chemical Processing: Reactors, heat exchangers, and sulfuric acid handling systems.

  5. Nuclear Energy: Control rod drive mechanisms and radiation-resistant instrumentation.

Q&A

Q1: How does Monel K500 compare to Monel 400 in mechanical performance?
A: Monel K500 offers 3x higher yield strength and 2x higher tensile strength than Monel 400 due to aluminum/titanium additions and aging treatment, while retaining equivalent corrosion resistance.

Q2: Can Monel K500 bars withstand cryogenic temperatures?
A: Yes. The alloy maintains ductility and near-zero magnetic permeability even at -196°C, making it suitable for LNG storage and superconducting systems.

Q3: What heat treatment is required for optimal performance?
A: Aging at 593–607°C for 6–16 hours followed by controlled cooling maximizes γ' phase precipitation. Cold-worked bars require stress relief annealing at 620–650°C to prevent cracking.

Tags:
