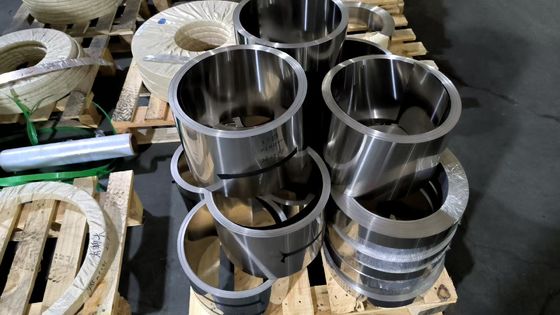

Inconel 617 Tube Solid Solution Alloy Gas Turbine Furnace Application

Products

Inconel 617 Tube Solid Solution Alloy Gas Turbine Furnace Application

MOQ:	150kgs
Price:	Negotiatable
Standard Packaging:	Wooden Case
Delivery Period:	2-30days
Payment Method:	L/C,T/T,MoneyGram,Western Union
Supply Capacity:	300 Ton per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NikTech

Certification

ISO 9001:2008

Model Number

Inconel 617

NiCr19Nb5Mo3

Application:

Engine Components, Exhaust Systems

Surface:

Bright,Oxidized

Machinability:

Difficult

Alloy Type:

Nickel-based Deformed Superalloy

Tensile Strength Rm:

830 N/mm²

Melting:

1393-1427°C

Quality Test:

MTC (mill Test Certification)

Raw Materials:

NI REM,CR20-23%,CO10-13%MO8-10%

Type:

Nickel-Chromium-Based Superalloy

Width:

As Your Request

Alloy Or Not:

Alloy

Place Of Origin:

China

Packing:

Standard Export Packing

Highlight:

Bright inconel 617 tube

Oxidized inconel 617 tube

Furnace inconel 617 pipe

Product Description

Inconel 617 Tubes: Solid-Solution Alloy and Gas-Turbine and Furnace Applications

Product Overview

Inconel 617 Tubes (UNS N06617) are solid-solution strengthened nickel-chromium-cobalt-molybdenum alloys engineered for severe high-temperature and corrosive environments. The alloy’s composition—approximately 52 % Ni, 22 % Cr, 12.5 % Co, 9.5 % Mo, 1 % Al, and 0.3 % Ti—yields outstanding tensile strength up to 760 MPa and elongation over 30 % after solution annealing. These tubes retain mechanical integrity from cryogenic service to 982 °C (1800 °F), exhibiting exceptional resistance to oxidation, carburization, and thermal cycling in both oxidizing and reducing atmospheres. Inconel 617’s high chromium and aluminum contents form a dense alumina/chromia scale at temperature, while cobalt and molybdenum impart corrosion resistance in wet and chloride-bearing media. Available as seamless per ASTM B167 or welded per ASTM B163, tube OD ranges from 3 mm to 600 mm with wall thicknesses of 0.5 mm–30 mm, and lengths to 12 m, these tubes serve gas turbines (ducting, transition liners), chemical reactors (coil tubing, heat exchangers), and furnace hardware (radiant tubes, thermocouple protection). Their excellent weldability (TIG/GTAW, EB) and formability accommodate complex assemblies with minimal post-weld heat treatment.

Chemical Composition

Element	Content (%)
Nickel (Ni)	50.0–55.0
Chromium (Cr)	20.0–24.0
Cobalt (Co)	12.0–15.0
Molybdenum (Mo)	8.0–10.0
Aluminum (Al)	0.4–1.0
Titanium (Ti)	0.2–0.6
Iron (Fe)	Balance
Carbon (C)	≤ 0.10
Manganese (Mn)	≤ 1.0
Silicon (Si)	≤ 0.5
Phosphorus (P)	≤ 0.015
Sulfur (S)	≤ 0.015

Mechanical Properties

Condition	Tensile Strength	Yield Strength (0.2 % off.)	Elongation (4 D)	Hardness (Rockwell B)
Annealed Tubes	≥ 760 MPa	≥ 310 MPa	≥ 30 %	≤ 95 HRB
Cold-Drawn Tubes	758 MPa	383 MPa	56 %	~ 193 BHN

Physical Properties

Property	Value
Density	8.19 g/cm³
Melting Range	1330 – 1380 °C
Thermal Conductivity (25 °C)	11.1 W/m·K
Specific Heat Capacity (25 °C)	435 J/kg·K
Coefficient of Thermal Expansion (20 – 100 °C)	13.0 µm/m·°C
Electrical Resistivity (25 °C)	1.27 µΩ·m
Magnetic Permeability	≈ 1.002 (non-magnetic)

Conformance Standards

ASTM B167 – Seamless nickel-alloy tubes
ASTM B163 – Welded nickel-alloy tubes
AMS 5520 – Special strip and tube form
ISO 15156-3 / NACE MR0175-3 – Sour-service compatibility
UNS N06617 / W. Nr. 2.4663a – Material designation

Applications

Gas Turbine Engines: Ducting, transition liners, combustor fuel lines
Chemical Processing: Reactor coils, heat-exchanger tubing, bubbling caps
Heat Treatment Furnaces: Radiant tubes, thermocouple protection, retort baskets
Marine & Offshore: Seawater condenser tubes, riser sheathing
Nuclear: Control-rod support springs, spacer grids

Frequently Asked Questions

Q1: Why choose Inconel 617 Tubes for high-temperature service?
A1: Their solid-solution strengthening maintains tensile strength and ductility up to 982 °C without aging, and their high Cr/Al content provides superior oxidation and carburization resistance.

Q2: Are Inconel 617 Tubes weldable without loss of properties?
A2: Yes. TIG/GTAW and electron-beam welding produce sound welds; a solution-anneal post-weld restores full mechanical and corrosion resistance.

Q3: What tube sizes and finishes are available?
A3: OD from 3 mm to 600 mm, wall thickness 0.5 mm–30 mm; available pickled, annealed, or stress-relieved per ASTM B167 and custom lengths up to 12 m.
