Automotive Resistance Alloy Cr20Ni80 Oxidation Resistance For Industrial Heating
  • name

Automotive Resistance Alloy Cr20Ni80 Oxidation Resistance For Industrial Heating

MOQ: 150kgs
Price: Negotiatable
Standard Packaging: carton, plywood pallet
Delivery Period: 2-30days
Payment Method: L/C,T/T,Western Union
Supply Capacity: 300 Ton per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
NikTech
Certification
ISO 9001:2008
Model Number
Cr20Ni80
Thermal Conductivity:
11-18 W/m·K
High Temperature Resistance:
Up To 1000°C
Applications:
Heating Elements, Resistors, Thermocouples, Etc.
Available Forms:
Wire, Strip, Sheet, Foil, Rod, Bar, Etc.
Corrosion Resistance:
Excellent
Tensile Strength:
600-800 MPa
Composition:
Nickel, Chromium, Iron And Other Elements
Elongation:
20-30%
Density:
7.2-8.4 G/cm3
Low Temperature Resistance:
Down To -200°C
Electrical Resistivity:
1.0-1.5 μΩ·m
Highlight:

Automotive Resistance Alloy

,

Cr20Ni80 Resistance Alloy

,

Industrial Heating alloys corrosion

Product Description

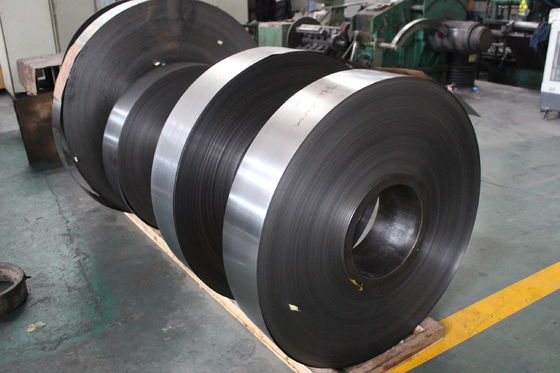

Cr20Ni80 Resistance Strip – Exceptional Thermal Stability & Oxidation Resistance for Industrial Heating



Description



Cr20Ni80 resistance strip is a high-performance nickel-chromium alloy (80% nickel, 20% chromium) designed for demanding high-temperature applications requiring superior oxidation resistance, mechanical durability, and stable electrical resistivity. Renowned for its ability to withstand temperatures up to 1,200°C (2,192°F), this alloy forms a protective chromium oxide (Cr₂O₃) layer that prevents scaling and degradation in oxidizing atmospheres. Its low iron content (<1%) and controlled trace elements (e.g., manganese, silicon) ensure minimal embrittlement and long-term reliability in cyclic heating environments such as industrial furnaces, electric heaters, and aerospace components.

Certified to ASTM B344 and GB/T 1234 standards, Cr20Ni80 strip achieves a tensile strength of 650–850 MPa and elongation ≥20%, outperforming conventional Fe-Cr-Al alloys in high-temperature stability. With an electrical resistivity of 1.09 µΩ·m and a low temperature coefficient of resistance (TCR), it delivers consistent energy efficiency in air, vacuum, or inert gas environments, making it ideal for precision heating applications in sectors like energy production, chemical processing, and consumer electronics.



Technical Specifications (Table)



Property Value Standard
Chemical Composition Ni: 75–80%, Cr: 19–21%, Fe: ≤1.0% ASTM B344, GB/T 1234
  Mn: ≤0.6%, Si: ≤1.0%, C: ≤0.08% DIN 17470
Mechanical Properties Tensile Strength: 650–850 MPa ASTM E8
  Elongation: ≥20%
Physical Parameters Density: 8.4 g/cm³ ISO 6892
  Melting Point: 1,400°C
  Electrical Resistivity: 1.09 µΩ·m



Applications



  1. Industrial Furnaces: Heating elements for annealing, sintering, and heat treatment processes.

  2. Energy Sector: Electric boilers, nuclear reactor components, and solar thermal systems.

  3. Consumer Appliances: Oven coils, toasters, and hair straighteners.

  4. Aerospace: Ignition systems and turbine blade heating elements.

  5. Automotive: Glow plugs, exhaust gas recirculation (EGR) heaters.



Q&A



Q1: What is the maximum continuous operating temperature for Cr20Ni80 strip?
A: 1,200°C in oxidizing atmospheres and 1,050°C in reducing or vacuum environments.

Q2: Can Cr20Ni80 withstand sulfur-rich environments?
A: Limited resistance. For sulfur exposure above 800°C, consider alloys with higher chromium or molybdenum content.

Q3: Is pre-oxidation necessary for optimal performance?
A: Optional but recommended. Heat-treat at 900–1,000°C for 1 hour to enhance oxide layer adhesion.

Tags:

heat resistant wire,

Resistance Wire,

nickel chromium
