Corrosion Resistant Alloy Incoloy 800 Plate ASTM 6-2500mm

Products

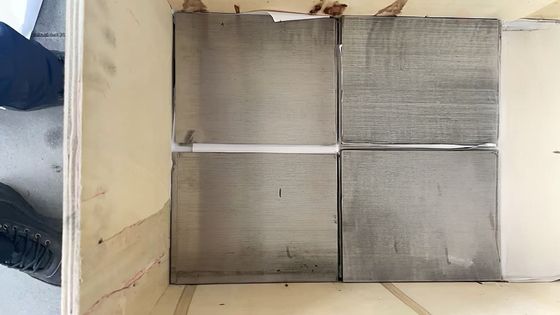

Corrosion Resistant Alloy Incoloy 800 Plate ASTM 6-2500mm

MOQ:	150kgs
Price:	Negotiatable
Standard Packaging:	Wooden Crate
Delivery Period:	2-30days
Payment Method:	L/C,T/T,Western Union,MoneyGram
Supply Capacity:	300 Ton per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NikTech

Certification

ISO 9001:2008

Model Number

Incoloy 800

Place Of Origin:

China

Density:

8.80 G/cm3

Sample:

Sample Free, Freight Only.

Alloy Type:

Corrosion Resistant Alloy

Executive Standard:

Thermal Conductivity:

21.8 W/mK

Hardness:

150-250 HB

Packing:

Wooden Crate

Price Term:

Discuss

Type Of Material:

Nickel-copper Alloys

Outer Diameter:

6-2500mm, (3/8"-100")

Condition:

Hard / Soft

Thickness:

1 MM TO 3 MM

Highlight:

Corrosion Resistant Incoloy 800 Plate

2500mm Incoloy 800 Plate

ASTM alloy 800 plate

Product Description

Incoloy 800 Plates: 816 °C Continuous Service and Excellent Formability

Product Overview

Incoloy 800 Plates are wrought, austenitic alloys combining nickel, iron, and chromium to achieve superior high-temperature strength and corrosion resistance. The alloy’s formulation—30–35 % Ni, 19–23 % Cr, 39–46 % Fe, 0.15 % C, 1 % Mn, 1 % Si, 0.6 % Al, 0.6 % Ti—maintains an austenitic structure and resists grain-boundary carbide formation, minimizing embrittlement during prolonged exposures at 760–816 °C. Its solid-solution strengthening, enhanced by high Cr and Al, forms protective chromia and alumina scales, delivering oxidation and carburization resistance in gas-turbine environments and furnace atmospheres. In chemical and petrochemical services, Incoloy 800 Plates resist nitric and sulfuric acids, chloride stress-corrosion cracking, and caustic attack, making them ideal for heat exchangers, reaction vessels, and piping systems under severe conditions. Excellent weldability (TIG/GTAW, electron beam) and ductility (elongation ≥ 30 %) allow complex panel fabrication and heavy-gauge forming without post-weld degradation. Available in thicknesses from 2 mm to 100 mm and widths up to 2 m, Incoloy 800 Plates meet global standards for pressure-containing and high-temperature applications.

Chemical Composition

Element	Content (%)
Nickel (Ni)	30.0 – 35.0
Chromium (Cr)	19.0 – 23.0
Iron (Fe)	Balance
Carbon (C)	≤ 0.15
Manganese (Mn)	≤ 1.0
Silicon (Si)	≤ 1.0
Aluminum (Al)	0.15 – 0.60
Titanium (Ti)	0.15 – 0.60
Copper (Cu)	≤ 0.50
Sulfur (S)	≤ 0.03
Phosphorus (P)	≤ 0.04

Mechanical Properties

Condition	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)	Hardness (HB)
Annealed (760 °C max)	400 – 600	150 – 450	≥ 30	55 – 80

Physical Properties

Property	Value
Density	8.00 g/cm³
Melting Range	1425 – 1455 °C
Thermal Conductivity (100 °C)	11.2 W/m·K
Specific Heat Capacity (25 °C)	460 J/kg·K
Electrical Resistivity (20 °C)	0.77 µΩ·m
Coefficient of Thermal Expansion	14.4 µm/m·°C (20–100 °C)

Conformance Standards

ASTM B407 / ASME SB-407 – Nickel-Iron-Chromium Alloy Plate
AMS 5542 – Special Quality UNS N08800 Plate
ISO 15156-3 / NACE MR0175-3 – Sour-Service Compatibility
UNS N08800 / W. Nr. 1.4876 – Material Designation

Applications

Chemical Processing: Heat exchangers, piping, reaction vessels, nitric acid service
Petrochemical & Refining: Reforming furnace coils, reactor internals
Power Generation: Gas-turbine transition ducts, combustor liners
Furnace Equipment: Radiant tubes, retorts, heating-element sheathing
Marine: Desalination plant panels, seawater coolers

Frequently Asked Questions

Q1: What temperature range is suitable for Incoloy 800 Plates?
A1: Continuous service up to 816 °C with cycle resistance to 982 °C, maintaining mechanical and corrosion performance.

Q2: Are Incoloy 800 Plates weldable and formable?
A2: Yes—TIG/GTAW and EB welding preserve alloy properties; ductility ≥ 30 % enables stamping and bending without cracking.

Q3: Which industries benefit most from Incoloy 800 Plates?
A3: Chemical, petrochemical, power generation, furnace manufacturing, and marine sectors due to heat and corrosion resilience.
