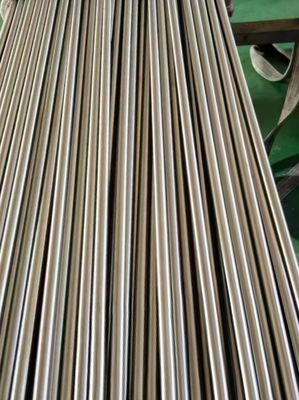

Incoloy 803 Rods High Temperature Performance For Demanding Applications

Products

Incoloy 803 Rods High Temperature Performance For Demanding Applications

MOQ:	150kgs
Price:	Negotiatable
Standard Packaging:	Wood box
Delivery Period:	2-30days
Payment Method:	L/C,T/T,Western Union,MoneyGram
Supply Capacity:	300 Ton per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NikTech

Certification

ISO 9001:2008

Model Number

Incoloy 803

Tensile Strength For Rod:

572-607

Nickel:

32.0-37.0

Material Type:

Nickel-based Alloy

Surface Treatment:

Anodized,Brushed,Mill Finished,Polished

Electrical Resistivity:

0.98 µΩ·m At 20°C (38.6 µΩ·in)

Testing Facility:

Accept Third Party Testing Such As SGS

Specific Heat:

479 J/kg•°C

Grade:

Nickel Base Alloy

Technique:

Hot Rolled

Permeability At 200 Oersted (15.9 KA/m).:

1.001

Equal Grade:

UNS S35045

Heat Treatment:

Annealing At 1100-1200°C

Surface:

Bright Color, Acid White, Oxidized Color

Thermal Conductivity:

11.3 W/m•°C

Coefficient Of Expansion:

14 µm/m/°C

Elongation:

45-50%

Highlight:

High Temperature incoloy 803

hot rolled incoloy 803

UNS S35045 incoloy ds

Product Description

Incoloy 803 Rods: Superior High-Temperature Performance for Demanding Applications

Incoloy 803 rods are advanced iron-nickel-chromium alloys engineered for superior performance in high-temperature and corrosive environments. With elevated nickel and chromium content, these rods offer exceptional resistance to oxidation, sulfidation, and carburization, making them ideal for demanding applications in petrochemical, chemical, and thermal processing industries.

Chemical Composition

Incoloy 803 rods are composed of the following elements:

Element	Percentage (%)
Nickel (Ni)	32.0 – 37.0
Chromium (Cr)	25.0 – 29.0
Iron (Fe)	Balance*
Carbon (C)	0.06 – 0.10
Aluminum (Al)	0.15 – 0.60
Titanium (Ti)	0.15 – 0.60
Copper (Cu)	≤0.75
Sulfur (S)	≤0.015
Manganese (Mn)	≤1.5
Silicon (Si)	≤1.0

Balance refers to the remaining composition, primarily iron.

Mechanical Properties

The mechanical properties of Incoloy 803 rods are as follows:

Property	Value (Metric)	Value (Imperial)
Tensile Strength	586 – 627 MPa	85.0 – 91.0 ksi
Yield Strength	275 – 296 MPa	40.0 – 43.0 ksi
Elongation at Break	45% – 50%	45% – 50%

Physical Properties

Key physical properties include:

Density: 7.86 g/cm³ (0.284 lb/in³)
Melting Range: 1365°C – 1400°C (2490°F – 2555°F)
Young’s Modulus (at 20°C): 195 GPa (28,300 ksi)
Shear Modulus (at 20°C): 73.8 GPa (10,700 ksi)
Poisson’s Ratio (at 20°C): 0.32

Applications

Incoloy 803 rods are widely used in:

Petrochemical processing
Chemical processing
Thermal processing
Manufacture of internally finned pyrolysis tubing in high-severity ethylene furnaces

Frequently Asked Questions

What industries benefit from Incoloy 803 rods?
- Industries such as petrochemical, chemical, and thermal processing utilize Incoloy 803 rods for their exceptional high-temperature corrosion resistance.
How does Incoloy 803 compare to other Incoloy alloys?
- Incoloy 803 offers higher nickel and chromium content than alloys like 800H and 800HT, providing enhanced resistance to oxidation, sulfidation, and carburization.
What are the welding considerations for Incoloy 803 rods?
- Welding should be performed using compatible consumables, such as INCONEL Welding Electrode 117 and INCONEL Filler Metal 617, to maintain the alloy's properties.
