High Temperature Hastelloy X Rod For Petrochemical Equipment

Products

High Temperature Hastelloy X Rod For Petrochemical Equipment

MOQ:	150kgs
Price:	Negotiatable
Standard Packaging:	WoodBox
Delivery Period:	2-30days
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity:	300 Ton per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NikTech

Certification

ISO 9001:2008

Model Number

Hastelloy X

Densitsy:

8.22 G/cm³

Process:

Cutting Forging Hot Rolling Cold Rolling

Packing:

Standard Export Packing

Thermal Conductivity:

9.2 W/m-°C

Heat Treatment:

Solution Treatment

Material:

Ni Cr Mo Fe

Size:

Custom Size

Toughness And Plasticity:

Tensile Strength:

760 MPa

Processing Services:

Can Be Deep Processed, Welded, Polished

Type Alloy:

Nickel-based High-temperature Alloys

Modulus Of Elasticity:

205 GPa（29.8 X 106 Psi）

Poisson's Ratio:

0.328

Magnetic Permeability:

1.002 At 200 Oersteds (15,900 A/m)

Melting Range:

1260 - 1355°C

Type:

UNS N06002/W86002)/W-Nr. 2.4665

GH 3536 /NS 3312

Highlight:

High Temperature hastelloy x rod

760 MPa hastelloy x rod

UNS N06002 hastelloy x bar

Product Description

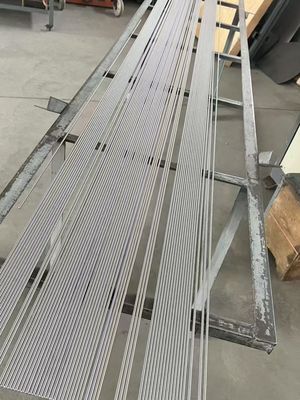

High-Temperature Hastelloy X Rod for Petrochemical Equipment

Hastelloy X Rod: Premium High-Temperature Alloy for Demanding Applications

Hastelloy X rod, also known as UNS N06002, is a nickel-based superalloy renowned for its exceptional performance in high-temperature and corrosive environments. With a composition that includes nickel, chromium, iron, molybdenum, and small amounts of cobalt and tungsten, this alloy offers outstanding oxidation resistance and strength up to 2200°F (1200°C). Its excellent weldability and fabricability make it ideal for use in aerospace, petrochemical, and industrial furnace applications.

Chemical Composition

Element	Content (%)
Nickel (Ni)	Balance
Chromium (Cr)	20.5–23.0
Iron (Fe)	17.0–20.0
Molybdenum (Mo)	8.0–10.0
Cobalt (Co)	0.5–2.5
Tungsten (W)	0.2–1.0
Carbon (C)	0.05–0.15
Manganese (Mn)	≤1.0
Silicon (Si)	≤1.0
Phosphorus (P)	≤0.04
Sulfur (S)	≤0.03

Mechanical Properties

Property	Value
Tensile Strength	760 MPa
Yield Strength	340 MPa
Elongation	48%
Hardness (Rockwell B)	89 HRB
Modulus of Elasticity	205 GPa
Density	8.22 g/cm³
Melting Point	1260–1355°C

Physical Properties

Thermal Conductivity: 9.2 W/(m·°C)
Coefficient of Thermal Expansion: 13.9 µm/(m·°C)
Electrical Resistivity: 114.83 µohm-cm

Standards & Specifications

Sheet, Plate & Strip	AMS 5536SB 435/B 435P= 43
Billet, Rod & Bar	AMS 5754SB 572/B 572B 472P= 43
Coated Electrodes	SFA 5.11/ A 5.11(ENiCrMo-2)F= 43
Bare Welding Rods & Wire	SFA 5.14/ A 5.14(ERNiCrMo-2)AMS 5798F=43
Seamless Pipe & Tube	SB 622/B 622P= 43
Welded Pipe & Tube	AMS 5588SB 619/B 619SB 626/B 626P= 43
Fittings	SB 366/B 366P= 43
Forgings	AMS 5754
DIN	17742 No. 2.4665NiCr22Fe18Mo
Others	NACE MR0175ISO 15156

Applications

Aerospace: Gas turbine engines, combustor cans, transition ducts, flame holders, tailpipes, cabin heaters.
Petrochemical: Retorts, muffles, catalyst support grids, furnace baffles.
Industrial: Heat-treating fixtures, furnace retorts, pyrolysis operations.
Energy: Components in power generation systems requiring high-temperature resistance.

FAQs

Q1: What is the maximum operating temperature for Hastelloy X rod?

A1: Hastelloy X rod maintains its strength and oxidation resistance up to 2200°F (1200°C), making it suitable for high-temperature applications.

Q2: Is Hastelloy X rod weldable?

A2: Yes, Hastelloy X rod exhibits excellent weldability using various welding techniques, including gas tungsten arc welding (GTAW) and gas metal arc welding (GMAW).

Q3: What industries commonly use Hastelloy X rod?

A3: Industries such as aerospace, petrochemical, energy, and industrial manufacturing utilize Hastelloy X rod for components exposed to high temperatures and corrosive environments.
