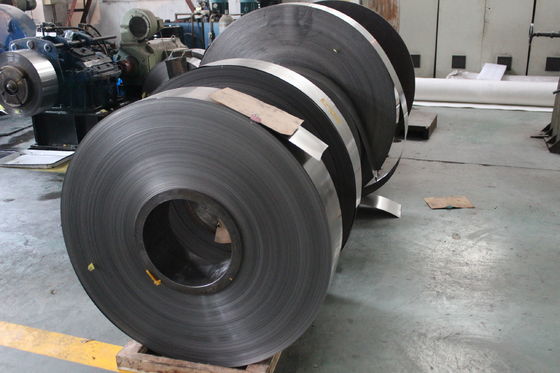

Low Expansion Ceramic Seal Expansion Alloys 4J33 Strips 500-1000 MPa
  • name

Low Expansion Ceramic Seal Expansion Alloys 4J33 Strips 500-1000 MPa

MOQ: 150kgs
Price: Negotiatable
Standard Packaging: Wooden Crate
Delivery Period: 2-30days
Payment Method: L/C,T/T,Western Union,MoneyGram
Supply Capacity: 300 Ton per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
NikTech
Certification
ISO 9001:2008
Model Number
4J33
Place Of Origin:
China
Composition:
Nickel, Iron, Cobalt, Manganese, Silicon
Electrical Resistivity:
0.1-0.2 μΩm
Elongation:
10-20%
Magnetic Properties:
Ferromagnetic
Availability:
Available In Various Forms Such As Sheets, Plates, Rods, Wires, And Tubes
Hardness:
150-250 HV
Thermal Expansion Coefficient:
6-18 X 10^-6/K
Tensile Strength:
500-1000 MPa
Density:
8.0 G/cm3
Melting Point:
1300-1400°C
Applications:
Thermometers, Thermostats, Bimetallic Strips, Metal Bellows
Thermal Conductivity:
10-20 W/mK
Highlight:

Low Expansion Alloys

,

4J33 Expansion Alloys

,

1000 MPa invar 36

Product Description

4J33 Strips: Low-Expansion Ceramic Seal and Excellent Formability

Product Overview

Expansion Alloy 4J33 Strips (UNS K94610) are wrought iron-nickel-cobalt alloys tailor-made for glass-to-metal and ceramic-to-metal sealing. Their precise chemistry—32.1–33.6 % Ni and 14.0–15.2 % Co, with C, P, S ≤ 0.05 %—creates a CTE of 6.3 × 10⁻⁶ /°C (20–400 °C) to 8.5 × 10⁻⁶ /°C (20–600 °C), closely matching 95 % Al₂O₃ ceramics and minimizing thermal mismatch stresses. In the annealed “soft” delivery condition, 4J33 Strips achieve tensile strengths < 570 MPa and yield strengths commensurate with high-integrity seals; a “hard” temper raises tensile strength > 700 MPa for demanding structural applications. Exceptional elongation (up to 42 %) and hardness (~ 78 HB) enable fine blanking, deep drawing, and stamping of diaphragms, bellows, and precision feedthrough parts. Physical stability is assured by a melting range near 1450 °C, density of 8.27 g/cm³, thermal conductivity of 17.6 W/m·°C, and resistivity of 0.46 µΩ·m. Supplied in cold-rolled gauges (0.1–3.5 mm thick, widths up to 300 mm), these strips meet ASTM F15 (controlled-expansion alloys) and UNS K94610 specifications, serving global markets from vacuum-tube manufacturing to implantable medical devices.

Chemical Composition

Element Content (%)
Nickel (Ni) 32.1 – 33.6
Cobalt (Co) 14.0 – 15.2
Carbon (C) ≤ 0.05
Phosphorus (P) ≤ 0.02
Sulfur (S) ≤ 0.02
Manganese (Mn) ≤ 0.50
Silicon (Si) ≤ 0.30
Iron (Fe) Balance

Mechanical Properties

Condition Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Hardness (HB)
Soft (Annealed) < 570 –– 42 ~ 78
Hard (Tempered) > 700 –– –– ––

Physical Properties

Property Value
Density 8.27 g/cm³
Melting Point ~ 1450 °C
Thermal Conductivity (25 °C) 17.6 W/m·°C
Electrical Resistivity (25 °C) 0.46 µΩ·m
Mean CTE (–60 °C–600 °C) 6.3–8.5 × 10⁻⁶/°C
Curie Point 430 °C

Conformance Standards

  • ASTM F15 – Controlled-expansion alloy strip

  • UNS K94610 / W. Nr. 1.3981 – Alloy designation

  • YB/T 5231-2005 – Chinese sealing alloy standard

  • DIN EN 601 – Ceramic-sealed alloy specifications

Applications

  • Vacuum & Electronic Packaging – Hermetic feedthroughs, vacuum tube envelopes

  • Aerospace Instruments – Engine sensor seals, satellite components

  • Medical Devices – Implantable sensor housings, surgical instrument seals

  • Industrial Sensors – High-precision pressure and temperature transducers

  • Lighting & Photonics – Flash-lamp and photomultiplier tube bases

Frequently Asked Questions

Q1: How closely does 4J33 match ceramic CTE?
A1: 4J33 Strips exhibit a mean linear CTE of 6.3 × 10⁻⁶/°C (20–400 °C) to 8.5 × 10⁻⁶/°C (20–600 °C), matching 95 % Al₂O₃ within ± 0.2 × 10⁻⁶/°C.

Q2: Can 4J33 be welded or brazed?
A2: Yes—TIG, electron-beam welding, and active brazing alloys achieve hermetic bonds to Kovar, Invar, and stainless substrates without altering expansion properties.

Q3: What form factors are available?
A3: Cold-rolled strip in 0.1–3.5 mm thickness and up to 300 mm width; custom gauge, width, and finish per ASTM F15 and YB/T 5231 standards.

Tags:

expansion alloys,

super invar,

invar steel
