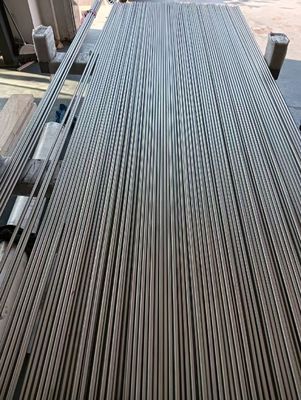

High Permeability 1J85 Soft Magnetic Alloy For Precision Electronics

Products

High Permeability 1J85 Soft Magnetic Alloy For Precision Electronics

MOQ:	150kgs
Price:	Negotiatable
Standard Packaging:	Wooden box packaging
Delivery Period:	2-30days
Payment Method:	L/C,T/T,Western Union,MoneyGram
Supply Capacity:	300 Ton per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NikTech

Certification

ISO 9001:2008

Model Number

Place Of Origin:

China

Mechanical Properties:

High Strength, Good Ductility, High Fatigue Resistance

Diameter:

6-300mm

Technique:

Cold Rolled

Elastic Modulus:

150-200 GPa

Density:

7.2-8.6 G/cm3

Electrical Resistivity:

50-100 μΩ·cm

Surface:

As Rolled

Sepc:

ASTM A801 Type 1

Material Composition:

Iron, Nickel, Cobalt, And Other Elements

Width:

1-200mm

Melting Point:

1300-1500 °C

Wire Diameter:

0.1-5.0mm

Length:

Packaging Details:

Wood Box

Highlight:

1J85 soft magnetic alloy

Precision Electronics soft magnetic alloy

Cold Rolled magnetic alloy

Product Description

High-Permeability 1J85 Soft Magnetic Alloy Pipes for Precision Electronics

Product Overview

1J85, also known as Ni80Mo5 or Supermalloy, is a high-performance soft magnetic alloy composed primarily of 79.0–81.0% nickel and 4.8–5.2% molybdenum, with iron as the balance. This alloy is renowned for its exceptional magnetic properties, including high initial permeability and low coercivity, making it ideal for applications requiring efficient magnetic flux control in weak magnetic fields.

The alloy's high nickel content imparts excellent magnetic permeability, while the addition of molybdenum enhances its resistance to magnetic aging, ensuring long-term stability of magnetic properties. The low coercivity characteristic allows for easy magnetization and demagnetization, which is crucial in reducing energy losses in electromagnetic components.

1J85's physical properties include a density of 8.75 g/cm³ and an electrical resistivity of 0.56 μΩ·m. The Curie point, which is the temperature above which the material loses its permanent magnetic properties, is approximately 400°C. These attributes contribute to the alloy's suitability in high-frequency applications where thermal stability and minimal energy loss are essential.

1J85 Soft Magnetic Alloy Pipes Chemical Composition

Element	Content (%)
Carbon (C)	≤0.03
Phosphorus (P)	≤0.02
Sulfur (S)	≤0.02
Manganese (Mn)	0.3–0.6
Silicon (Si)	0.15–0.3
Nickel (Ni)	79.0–81.0
Molybdenum (Mo)	4.8–5.2
Copper (Cu)	≤0.2
Iron (Fe)	Balance

1J85 Soft Magnetic Alloy Pipes Mechanical Properties

Property	Value
Density	8.75 g/cm³
Electrical Resistivity	0.56 μΩ·m
Curie Point	400°C
Saturation Magnetostriction Coefficient (λθ)	0.5 × 10⁻⁶

1J85 Soft Magnetic Alloy Pipes Magnetic Properties

Product Form	Thickness (mm)	Initial Permeability (μ₀)	Maximum Permeability (μₘ)	Coercivity (A/m)	Saturation Magnetic Induction (T)
Cold Rolled Strip	≥0.01	20	87.5	4.8	0.75
Cold Rolled Strip	0.1–0.19	37.5	187.5	1.6	0.7
Cold Rolled Strip	0.2–0.34	50	225	1.2	0.7
Cold Rolled Strip	0.35–1.0	62.5	312.5	0.8	0.7
Cold Rolled Strip	2.6–3.0	43.8	150	1.44	0.7

1J85 Soft Magnetic Alloy Pipes Applications

1J85 soft magnetic alloy pipes are extensively used in:

Magnetic Shielding: Protecting sensitive electronic components from external magnetic fields.
Transformer Cores: Enhancing efficiency in small power transformers.
Magnetic Amplifiers: Improving performance in low-frequency applications.
Choke Coils: Reducing energy losses in electrical circuits.
Magnetic Recording Devices: Ensuring high fidelity in data storage systems.

Frequently Asked Questions (FAQs)

What is the primary application of 1J85 soft magnetic alloy pipes?

1J85 soft magnetic alloy pipes are primarily used in applications requiring high magnetic permeability and low coercivity, such as transformer cores, magnetic amplifiers, and magnetic shielding.
What are the key benefits of using 1J85 alloy in electromagnetic components?

The key benefits include high initial permeability, low coercivity, low energy losses, and excellent thermal stability, making it ideal for efficient magnetic flux control in weak magnetic fields.
How does the chemical composition of 1J85 alloy contribute to its magnetic properties?

The high nickel content provides excellent magnetic permeability, while the addition of molybdenum enhances resistance to magnetic aging, ensuring long-term stability of magnetic properties.
