ASTM Nimonic 80A Rod For High Temperature Aerospace Components

Products

ASTM Nimonic 80A Rod For High Temperature Aerospace Components

MOQ:	150kgs
Price:	Negotiatable
Standard Packaging:	Wood box
Delivery Period:	2-30days
Payment Method:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity:	300 Ton per Month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

NikTech

Certification

ISO 9001:2008

Model Number

Nimonic 80A

Features:

Creep Resistance And Anti-oxidation

Alloy Type:

Nickel-based Superalloy

Strength:

Grade:

Ni Cr Fe Co

Size:

Negotiable

Executive Standard:

ASTM AMS AMSE

Composition:

Nickel-Chromium-Iron

Place Of Orig:

China

Machinability:

Difficult

Yield Strength:

310 MPa

Density:

8.19 G/cm3

Specific Heat Capacity:

448 J/kg °C

Magnetic Permeability:

1.000601 For 200-2000 Oersted

Volume Susceptibility:

4.78 X 10-5 At 1000 Gauss

Melting Point:

1320-1365 °C

Dynamic Young’s Modulus:

183 GPa

Standard:

UNS N07080/W. Nr. 2.4952 & 2.4631

Highlight:

ASTM nimonic 80a

AMS nimonic 80a

AMSE nimonic alloy 80a

Product Description

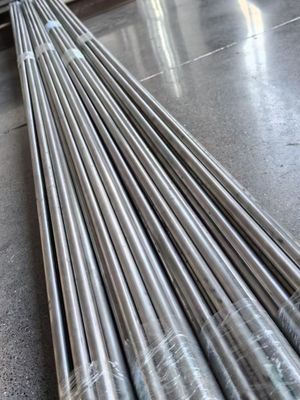

Nimonic 80A Rod for High-Temperature Aerospace Components

Nimonic 80A rod is a wrought, age-hardenable nickel-chromium alloy strengthened by additions of titanium, aluminum, and carbon. Developed for service at temperatures up to 815°C (1500°F), it offers excellent mechanical properties, oxidation resistance, and structural stability under thermal stress. This makes Nimonic 80A rod suitable for demanding applications in aerospace, nuclear, automotive, and industrial sectors.

Chemical Composition of Nimonic 80A Rod

Element	Composition (%)
Nickel (Ni)	Balance
Chromium (Cr)	18.0–21.0
Titanium (Ti)	1.8–2.7
Aluminum (Al)	1.0–1.8
Carbon (C)	≤0.10
Silicon (Si)	≤1.0
Copper (Cu)	≤0.2
Iron (Fe)	≤3.0
Manganese (Mn)	≤1.0
Cobalt (Co)	≤2.0
Boron (B)	≤0.008
Zirconium (Zr)	≤0.15
Sulfur (S)	≤0.015

Mechanical Properties of Nimonic 80A Rod

Condition	Ultimate Tensile Strength (MPa)
Annealed	800–1000
Annealed + Aged	1200–1400
Spring Temper	1300–1500
Spring Temper + Aged	1500–1800

Physical Properties of Nimonic 80A Rod

Property	Value
Density	8.19 g/cm³
Melting Range	1320–1365°C
Coefficient of Thermal Expansion (20–100°C)	12.7 µm/m·°C
Torsional Modulus	85GPa
Thermal Conductivit	11.2W/m •°C

Standards and Specifications

UNS N07080
W.Nr. 2.4952 / 2.4631
ASTM B637
BS 3076 NA 20
BS HR 1, HR 601

Applications of Nimonic 80A Rod

Nimonic 80A rods are utilized in various high-temperature applications, including:

Gas turbine components (blades, rings, discs)
Bolts and fasteners
Nuclear boiler tube supports
Die casting inserts and cores
Automotive exhaust valves

Frequently Asked Questions

Q: What is the maximum operating temperature for Nimonic 80A rods?
A: Nimonic 80A rods are designed for service at temperatures up to 815°C (1500°F), maintaining mechanical strength and oxidation resistance.

Q: Can Nimonic 80A rods be welded?
A: Yes, Nimonic 80A rods can be welded using appropriate techniques, such as tungsten inert gas (TIG) welding, with recommended filler metals like Nimonic 90.

Q: Are Nimonic 80A rods suitable for nuclear applications?
A: Yes, due to their low cobalt content and high-temperature performance, Nimonic 80A rods are specified for certain nuclear applications.
